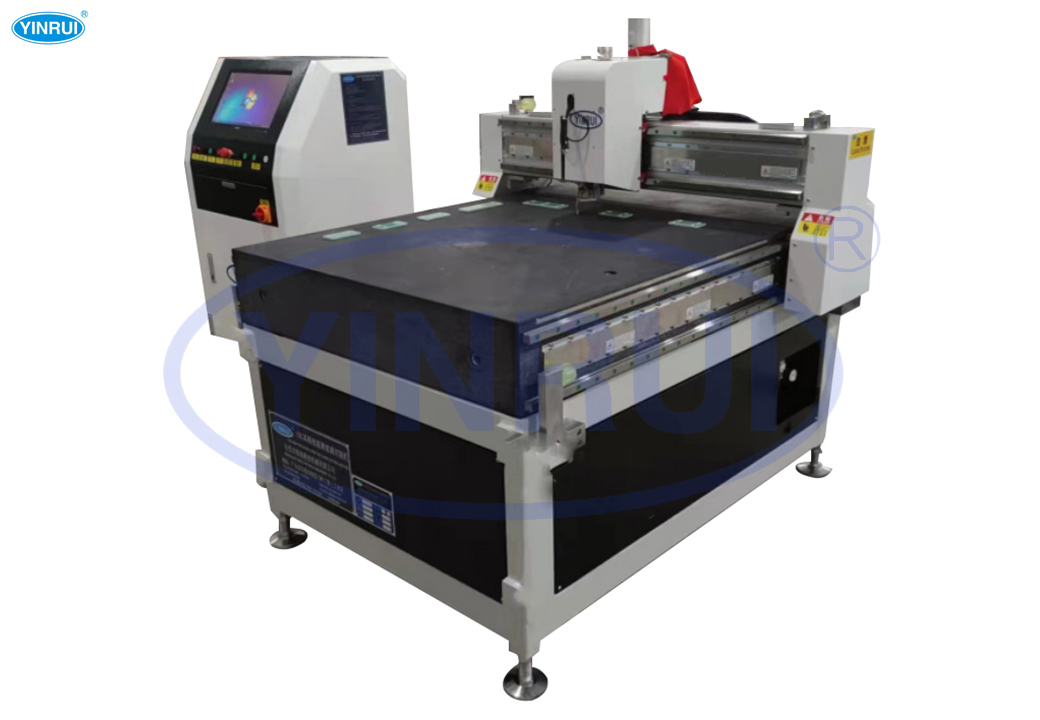

Double Glazing OLED Cutting
1. Technical parameters:
-
Cutting thickness: 0.1-5mm;
-
Effective size of cutting glass: ≤800*600mm;
-
Overall dimensions: about 1570 (L) * 1540 (W) * 1600 (H) mm (excluding control box);
-
Table height: 900±50mm;
-
Machine weight: about 1200kg;
-
Straight line marking tolerance: ±0.03-±0.05mm;
-
Special-shaped marking tolerance: ±0.08-±0.1mm;
-
Cutting speed: 0-60m/min (adjustable);
-
Beam processing accuracy: ±0.015mm;
-
Marble table flatness: ±0.15mm;
-
Power: 3.7kw;
-
Voltage: 3-phase 380V;
-
Unit area mass: ≤500KG/㎡.
2. Main configuration:
-
Transmission system: X and Y axes use Taiwan Hiwin linear motors; Z and A axes use Yaskawa servo motors (4 axes);
-
Mechanical configuration: Guide rails and sliders are Taiwan Hiwin;
-
Cutting table: marble precision table, including air flotation device;
-
Oil supply method: automatic oiling;
-
Positioning device: mechanical positioning (custom positioning block);
-
Bearing: Japan NSK;
-
Cutter head structure: servo motor control module;
-
Synchronous belt: Gates;
-
Blowing and suction device: Lion song aerator;
-
The cutting machine body and control box adopt a separate design, and the body is supported by 4 foot cups; the control box is supported by 4 universal wheels, which can move 360° freely, and it is convenient to adjust the position. After determining the position, the universal wheel can be locked and will not deviate at will.
3.CCD parameters:
-
CCD field of view: 10mm*11mm;
-
CCD pixels: 5 million pixels;
-
Controller: PC;
-
Magnification: 40-60 times;
-
Camera accuracy: 0.006mm;
-
Effective target size: + cursor ￠0.3-1.6mm; circular cursor ￠0.3-1.0mm; special targets need to be tested;
-
X-axis static repeat positioning accuracy: ≤0.03mm;
-
Y-axis static repeat positioning accuracy: ≤0.03mm;
-
Angular deviation: ≤0.2°;
-
Working positioning:
-
(1) Positioning method: mechanical positioning, vacuum adsorption;
-
(2) Positioning pin position: upper left corner.
