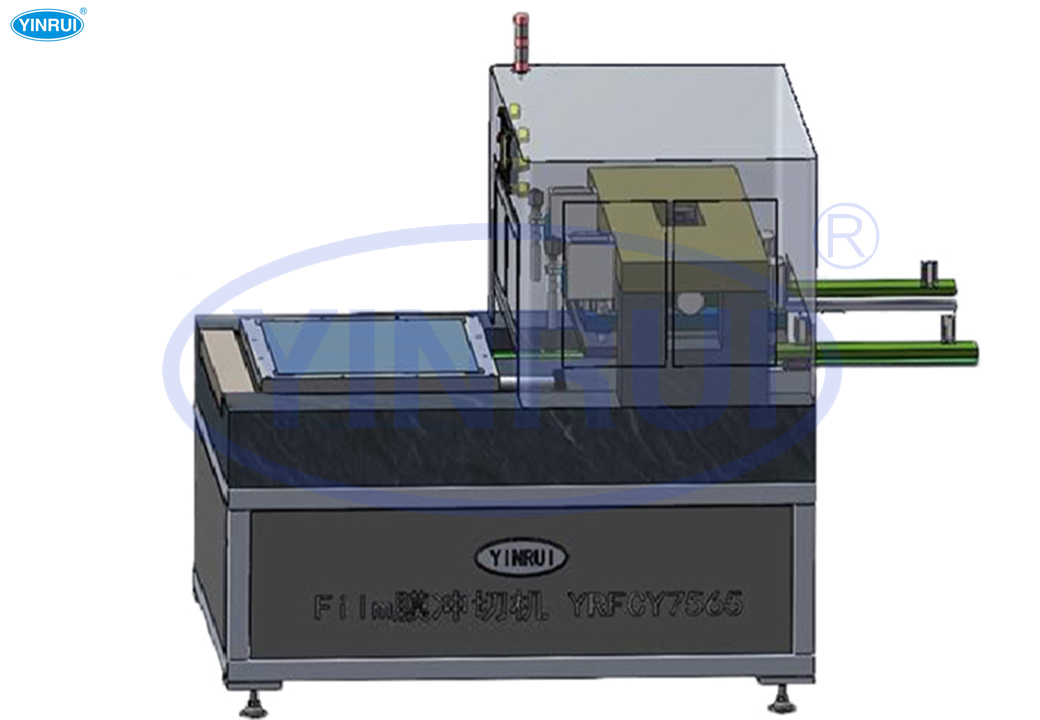

Flexible Material Cutting Machine
1. Equipment technical parameters:
|
No.
|
Name
|
Technical specifications
|
|
1
|
Machine dimensions
|
Approximately (L) 2580*(W) 3250*(H) 1500mm (Appearance dimensions are for reference only, subject
to the actual size of the machine)
|
|
2
|
Effective size of cut glass
|
(86 inches) 1913*1084mm
|
|
3
|
Minimum finished size of cut glass
|
200*200mm
|
|
4
|
Cutting thickness
|
0.5-3mm
|
|
5
|
Vertical accuracy of glass size
|
≤0.05℅ (inclusive) or above
|
|
6
|
Beam processing accuracy
|
±0.015mm (inclusive) or above
|
|
7
|
Cutting speed
|
0-50m/min (inclusive) or above
|
|
8
|
Total machine weight
|
<4000KG (for reference only, subject to the actual weight of the machine)
|
|
9
|
Cutter head
|
Upper and lower double knives (Only runs in the X-axis direction)
|
2. Equipment mechanical configuration:
|
No.
|
Name
|
Structural specification model
|
|
1
|
Transmission system (motor)
|
Taiwan Delta servo motor
|
|
2
|
Mechanical configuration
|
Precision belt drive
|
|
3
|
Cutting table
|
Precision iron plate (or marble), air flotation device
|
|
4
|
Positioning device
|
Mechanical positioning device, CCD visual positioning
|
|
5
|
Positioning method
|
Manual loading and unloading, mechanical positioning device, manual positioning CCD auxiliary
|
3. Equipment electrical and gas configuration:
|
No.
|
Name
|
Specification model
|
|
1
|
Pneumatic components
|
Japan SMC
|
|
2
|
Electrical components
|
Taiwan Sanhe
|
|
3
|
Relay
|
Taiwan Taian
|
|
4
|
Proportional valve
|
Japan SMC
|
|
5
|
Filter, solenoid valve
|
Japan SMC
|
|
6
|
Switching power supply
|
Taiwan Mingwei
|
|
7
|
Button, indicator light, selector switch
|
Taiwan Sanhe
|
|
8
|
AC contactor
|
Taiwan Taian
|
|
9
|
Air switch
|
Taiwan Taian (with leakage protection function)
|
|
10
|
Bearing
|
Japan NSK
|
|
11
|
PLC
|
Wei Lun
|
|
12
|
Power supply
|
380V
|
|
13
|
Air pressure
|
0.4-0.6MP (filter, dry air source), customer-provided vacuum pump air source
|
|
14
|
Total power
|
3.7KW (including one glass breaking table)
|
