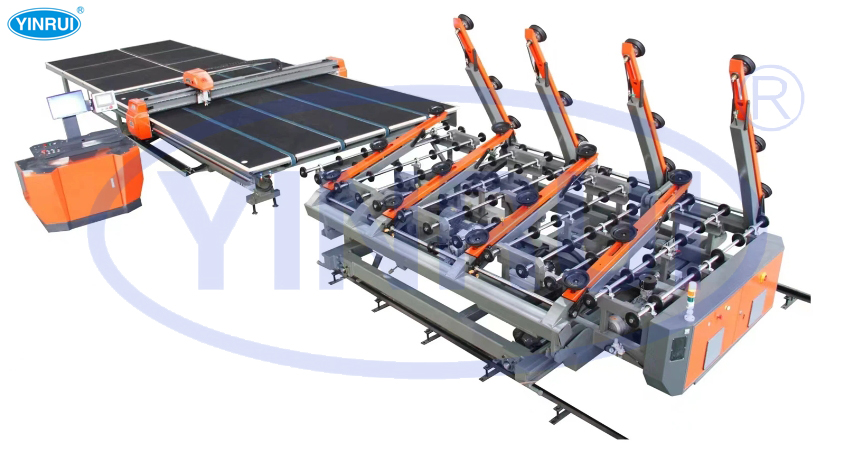

1. Technical parameters:
1) Upper dimension range: minimum loading size: 2400×1500mm (on one side)
2) . maximum loading sheet size: 6000×3300mm；
3) Thickness of glass sheet: 3 ~ 19mm;
4) Suction depth: 750mm;
5) X-axis traveling speed: 5 ~ 25m / min (adjustable);
6) Y-axis travel speed: 8 ~ 12m / min (adjustable);
7) Conveying speed: 5-25m / min (adjustable);
8) Number of turning arms: 12 arms (double side);
9) Number of single arm suction cups: three;
10) Loading arm: double side;
11) Loading cycle: 20-35s adjustable (30s for each additional station);
12) Installation power supply: AC380V / 50Hz (special circumstances can be adjusted according to customer requirements);
13) Total installed power: 8-17kw;
14) Compressed air: 0.6 ~ 0.8MPa;
15）Vacuum degree: - 50 ~ - 99kpa (adjustable according to glass thickness);
16) Table height: 900 ± 20mm;
17) Overall dimension: 6800×3480×900mm.
2. Electrical equipment configuration:
1) PLC controller: Delta
2) Frequency converter: Delta
3) Touch screen: Delta
4). Contactor: Schneider
5) Switching power supply: Delta
6) Control transformer: Chint
7) Solenoid valve: Air TAC
8) Photoelectric switch: Guangchuan
9) Proximity switch: Guangchuan
Note: depending on the delivery date and technical improvement, the manufacturing company reserves the right to replace the purchased parts of the same brand.
3. Mechanical configuration:
1) Main bearing: NSK
2) Guide rail: Fujun
3) Rack / gear: Ruian
4) Cutter wheel / cutter holder: German Bohle
5) Table top: imported industrial felt
6) Platform: Waterproof high-density board
