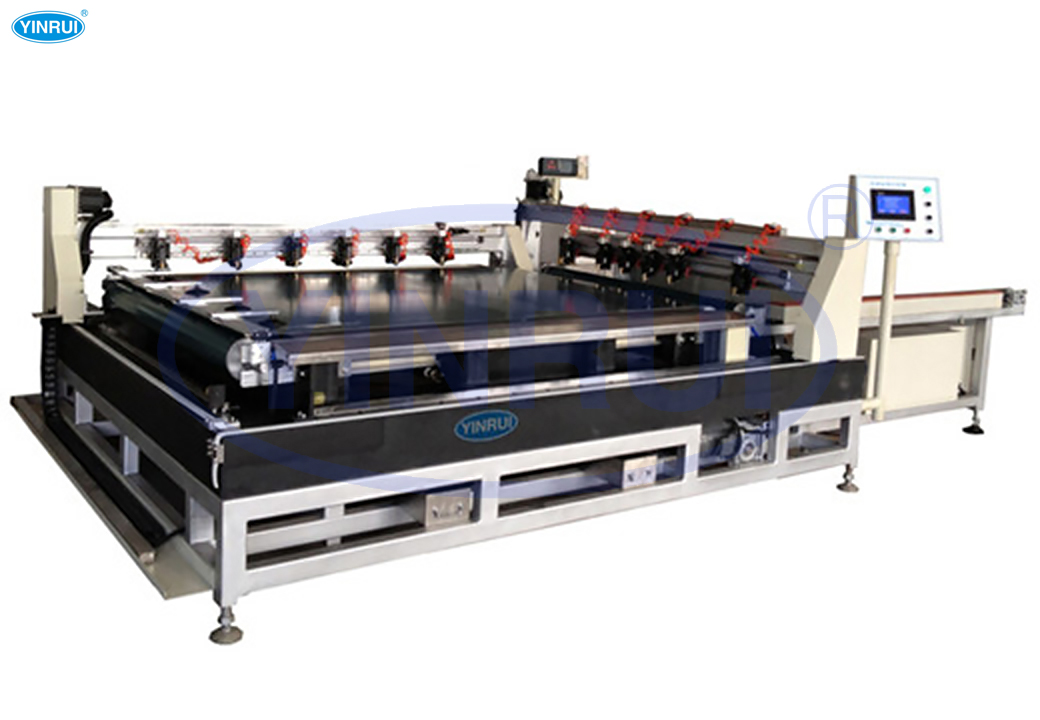

Ultra-Thin Multi-Blade Glass Cutting Machine + Transmission Type Breaking Table

1. Ultra-thin glass cutting machine:

  • Main frame system
  • Ultra-platform surface, guide rail installation surface (surface flatness reaches ±0.05mm, and the installation hole is processed once in the machining center)
  • X, Y beams
  • Positioning system
  • Tool holder moving device: linear guide
  • Air flotation device (fan, air duct, joint, etc.)
  • Conveying device (conveyor belt, conveyor roller, conveyor motor, etc.)
  • Transmission system (slide rail, bearing, transmission motor, PU synchronous belt, transmission shaft, etc.)
  • Control system (operating box, electrical cabinet, connecting cable, etc.)
  • Tool holder cutting size adjustment adopts imported grating ruler positioning

2. Air blowing conveying breaking table:

  • Main frame system
  • Conveying system (conveyor belt, conveyor roller, conveyor motor, etc.)
  • Air flotation system (fan, air duct, etc.)
  • Control system (electrical components, PLC, connecting cable, etc.)

3. Equipment parameters and features:

  • Type of glass plate cut: ultra-thin glass substrate modification
  • Maximum original glass plate specification: 1500*1200mm
  • Minimum size of glass plate after cutting: 300*300mm
  • Thickness of cut glass plate: 0.3~4mm
  • Number of tool holders: 10
  • Cutting accuracy: Parallelism: ≤±0.05mm
  • Table height: 900±50mm (adjustable)
  • Total power: about 9kw
  • Compressed air requirement: greater than 0.5Mpa
  • Power supply: 380VAC 50Hz
  • Dimensions: Cutting machine size: 2900*2400*1600mm Table size: 2100*1500*900mm
  • Positioning method: pneumatic lower position (can be raised and lowered)
  • Transmission method: air flotation and conveyor belt transmission
  • The table top is marble, and the upper part of the table top has an automatic transmission function
  • The whole machine operates automatically, controlled by a servo motor
  • The cutting speed is adjustable
  • The machine is equipped with a set of dust collection devices
  • The cutting counter can record the number of original glass sheets
  • Verticality 0.1%
  • Cutting beat: 20S
